On-site Nitrogen Generator

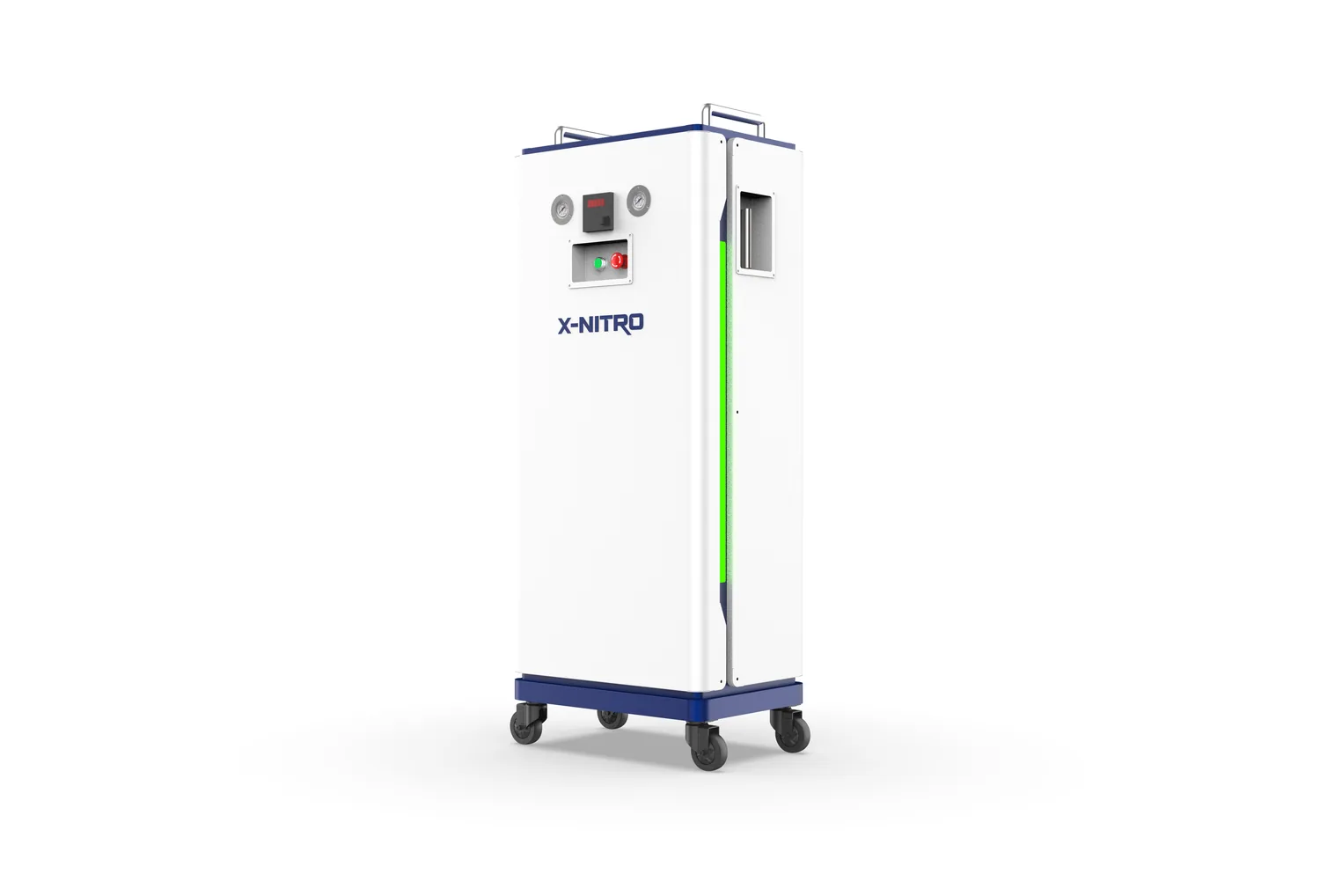

X-Nitro PSA Nitrogen Generator

X-Nitro is a compact PSA nitrogen generator built for laser welding users who need stable shielding gas, clean weld finishes, and freedom from cylinder delivery.

X-Nitro PSA Nitrogen Generator

Key features

PSA-driven nitrogen purity up to 99.99%

Continuous on-site nitrogen supply for laser welding

Plug-and-play operation with one-touch start

Trailer-mounted compact design for flexible workshop layouts

Clear status indication with generating and ready lights

No cylinder rental, refilling, transport, or handling fees

Applications

Handheld laser welding machines

Automatic metal laser welding stations

Lithium battery tab and cell welding

Automotive body and component welding

Precision electronics welding for sensors and connectors

Stainless steel, copper, titanium, and aluminum welding

Specifications

Model XN002
Nitrogen purity Up to 99.99%; >=99.9% in operation
Nitrogen output >= 2.5 m³/h at purity >= 99.5%
Nitrogen outlet pressure 0.4 MPa
Inlet air pressure 0.7 MPa - 0.9 MPa
Air consumption 0.3 m³/min (18 m³/h)
Power supply 220V / 50Hz
Power consumption Max. 0.026 kW
Gas storage tank 10 L
Dimensions 520 × 360 × 1240 mm
Weight 95 kg
Recommended welding machines 2 automatic welding machines or 2 handheld welders

Why X-Nitro exists

Laser welding users often buy the welding machine first, then struggle with nitrogen or argon supply. Cylinders create recurring rental, refilling, transport, storage, and safety management work. For small and medium workshops, large centralized nitrogen systems are often too expensive and too large.

X-Nitro is designed as the practical middle path: compact, movable, and ready for the plant floor. It delivers nitrogen on demand for clean metal laser welding without changing the workshop layout.

PSA technology in plain language

PSA means Pressure Swing Adsorption. Compressed air passes through CMS-filled adsorption towers. Oxygen is adsorbed under pressure, allowing nitrogen to pass through. Alternating adsorption and regeneration cycles create a continuous nitrogen supply on site.

Best-fit customers

The strongest fit is companies that already sell or use handheld laser welding machines. X-Nitro also works well for laser welding accessory distributors, repair providers, after-sales teams, and small metal fabrication plants that want a cleaner gas supply experience.

Talk to a product specialist

Tell us how many welders you use, what material you process, and your current gas supply problem.
